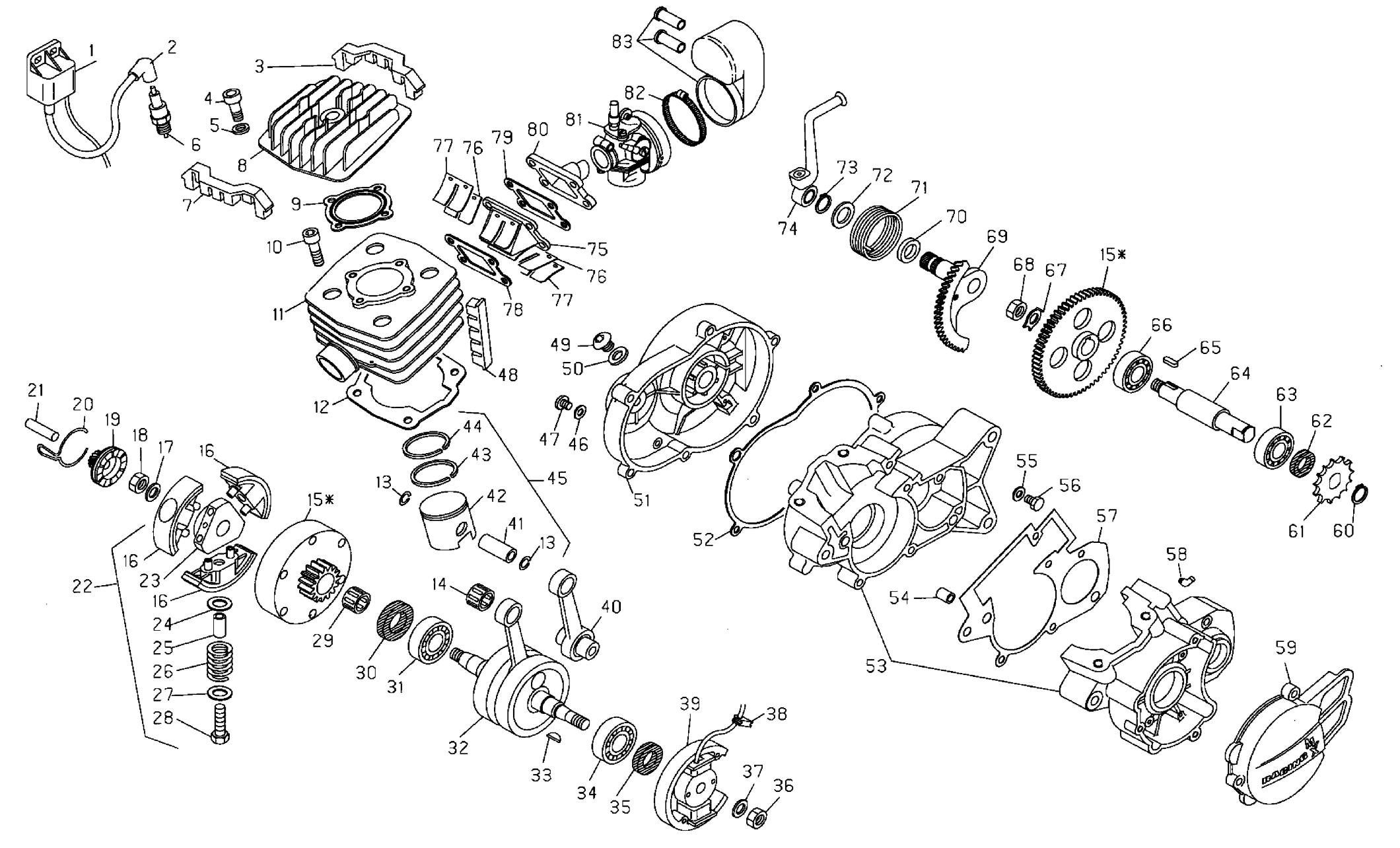

| 1 |
1120631000
|
H.T.COIL
|
€
72.19
|
|
|
| 2 |
2713512000
|
SPARK PLUG PROTECTOR
|
€
13.67
|
|
|
| 3 |
1621062000
|
MCA 2002 REAR HEAD RUBBER
|
€
4.48
|
|
|
| 4 |
3145000000
|
Screw TCCE 6.30
|
€
0.83
|
|
|
| 5 |
2740500000
|
Washer 6x13
|
€
0.41
|
|
|
| 6 |
1225200000
|
Spark.plug rn3c
|
€
8.80
|
|
|
| 7 |
1621061000
|
MCA 2002 FRONT HEAD RUBBER
|
€
0.00
|
|
|
| 8 |
2912038059
|
MINI CROSS AIR HEAD
|
€
36.57
|
|
|
| 9 |
1664100000
|
MINI-CROSS HEAD CYLINDER GASKET
|
€
3.43
|
|
|
| 10 |
3163890000
|
Screw TCCEM8X20
|
€
1.86
|
|
|
| 11 |
1252504059
|
CYLINDER, (H.58) MINI TRIAL II
|
€
118.72
|
|
|
| 12 |
1661750000
|
Crankcase-cylinder packing
|
€
8.39
|
|
|
| 13 |
1042010000
|
Ring
|
€
0.95
|
|
|
| 14 |
1611500000
|
Roller cage
|
€
5.33
|
|
|
| 15 |
2906919800
|
PRIMARY TRANSMISSION MINI TRIAL
|
€
127.24
|
|
|
| 16 |
2230106800
|
MINIMCH 2001 CLUTCH GASKET
|
€
18.48
|
|
|
| 17 |
2758500060
|
WASHER 10.17.0,60
|
€
0.50
|
|
|
| 18 |
1320200000
|
NUT, 10.1,25.6
|
€
2.64
|
|
|
| 19 |
33.00330.000
|
MINI-CROSS STARTER SLEEVE W/GEAR
|
€
32.15
|
|
|
| 20 |
2258040000
|
MINI-CROSS STARTER SLEEVE SPRING
|
€
6.84
|
|
|
| 21 |
2543911000
|
PIN
|
€
1.19
|
|
|
| 22 |
1508883800
|
MINI TRIAL COMPLETE CLUTCH
|
€
146.92
|
|
|
| 23 |
2290019000
|
CLUTCH HUB
|
€
71.34
|
|
|
| 24 |
2758061015
|
WASHER 8,2.15.0,15
|
€
0.50
|
|
|
| 25 |
2909577000
|
CLUTCH TUBE
|
€
7.02
|
|
|
| 26 |
2237890000
|
MINI MCA 2003 CLUTCH SPRING
|
€
2.15
|
|
|
| 27 |
2758062000
|
8,2.15.1 WASHER
|
€
0.50
|
|
|
| 28 |
1149511000
|
BOLT 6.25
|
€
0.58
|
|
|
| 29 |
1612905000
|
NEEDLE BEARING 15.18.17
|
€
8.31
|
|
|
| 30 |
1062020000
|
OIL SEAL.
|
€
12.27
|
|
|
| 31 |
1296000000
|
BALL BEARING 17X40X12
|
€
0.00
|
|
|
| 32 |
1000725000
|
CRANKSHAFT MINI CROSS A/C
|
€
191.65
|
|
|
| 33 |
1245000000
|
WOODRUFF 2,5 . 3,7 . UNI 6606
|
€
1.37
|
|
|
| 34 |
1296000000
|
BALL BEARING 17X40X12
|
€
0.00
|
|
|
| 35 |
1056010000
|
OIL SEAL -15.24.7 VYTON
|
€
9.30
|
|
|
| 36 |
1319020000
|
NUT 10.1,25.6
|
€
0.00
|
|
|
| 37 |
2758500000
|
WASHER 10.17
|
€
0.00
|
|
|
| 38 |
1633510000
|
MINI-CROSS FLYWHEEL GUIDING SLIT
|
€
1.56
|
|
|
| 39 |
3103262000
|
FLYWHEEL MINI CROSS
|
€
89.15
|
|
|
| 40 |
1000727 000
|
MINI-CROSS COMPL. CONNECTING ROD
|
€
272.73
|
|
|
| 41 |
2893610000
|
PISTON PIN 12.33
|
€
8.78
|
|
|
| 42 |
2580257000
|
PISTON
|
€
0.00
|
|
|
| 43 |
2860160000
|
PISTON RING D.39,5 RK6-50
|
€
15.29
|
|
|
| 44 |
2860160000
|
PISTON RING D.39,5 RK6-50
|
€
15.29
|
|
|
| 45 |
2580257800
|
PISTON ASSY
|
€
80.37
|
|
|
| 46 |
1647500000
|
Packing6x12x1,5
|
€
0.62
|
|
|
| 47 |
3130490051
|
Screw M6x8TTLIC
|
€
0.66
|
|
|
| 48 |
1621031000
|
MCA 2002 CYLINDER RUBBER
|
€
5.83
|
|
|
| 49 |
2910290000
|
Oil fillingcap
|
€
3.64
|
|
|
| 50 |
1653600000
|
Packing16x22,5x1
|
€
0.62
|
|
|
| 51 |
1262113033
|
CLUTCH COVER, MCH
|
€
46.84
|
|
|
| 52 |
1671530000
|
MINI-CROSS CLUTCH COVER GASKET
|
€
2.93
|
|
|
| 53 |
1206311800
|
MINI-CROSS/TRIAL CRANKCASE
|
€
149.35
|
|
|
| 54 |
1636500000
|
Dowel 9x7,2x10
|
€
1.69
|
|
|
| 55 |
1650510000
|
Gasket 10x15x1 copper
|
€
0.87
|
|
|
| 56 |
1158000000
|
BOLT, SPECIAL 10.1,5.10
|
€
3.13
|
|
|
| 57 |
1655050000
|
MINI-CROSS CRANKCASE GASKET
|
€
1.94
|
|
|
| 58 |
2723380000
|
Breather pipe
|
€
2.20
|
|
|
| 59 |
1270110033
|
FLYWHEEL COVER, MINI CROSS -E-
|
€
5.70
|
|
|
| 60 |
2823600000
|
SEEGER 15E
|
€
0.79
|
|
|
| 61 |
2561112000
|
SPROCKET Z.9
|
€
25.62
|
|
|
| 62 |
1054000000
|
OIL SEAL 15.24.5
|
€
2.64
|
|
|
| 63 |
1294000000
|
Bearing15x35x11
|
€
9.42
|
|
|
| 64 |
1026150000
|
MINI-CROSS TRANSMISSION SHAFT
|
€
28.88
|
|
|
| 65 |
1246160000
|
WOODRUFF 5.5.12
|
€
1.20
|
|
|
| 66 |
1294000000
|
Bearing15x35x11
|
€
9.42
|
|
|
| 67 |
2774760000
|
Nut tab washer14
|
€
1.69
|
|
|
| 68 |
1328950000
|
Special nut 14x1,25x6
|
€
6.62
|
|
|
| 69 |
2205084000
|
MINI CROSS KICKSTARTER LEVER
|
€
70.08
|
|
|
| 70 |
1056015000
|
Oil seal 16x22x4
|
€
4.30
|
|
|
| 71 |
2279040000
|
MINI-CROSS STARTER LEVER SPRING
|
€
3.55
|
|
|
| 72 |
2767510000
|
Washer 16.25.1
|
€
1.07
|
|
|
| 73 |
2823600000
|
SEEGER 15E
|
€
0.79
|
|
|
| 74 |
2155112000
|
KICKSTARTER LEVER ASSY
|
€
41.03
|
|
|
| 75 |
3102120000
|
REED VALVE COMPLETE 4M/PM
|
€
46.08
|
|
|
| 76 |
2115360000
|
Plaque
|
€
6.32
|
|
|
| 77 |
2559670000
|
Plate
|
€
1.74
|
|
|
| 78 |
1692550000
|
Valvegasket
|
€
1.53
|
|
|
| 79 |
1683530000
|
INLET MANIFOLD GASKET 4M/PM
|
€
1.32
|
|
|
| 80 |
2719742000
|
INLET MANIFOLD
|
€
8.30
|
|
|
| 81 |
1204431000
|
CARBURETOR SHA 15/15
|
€
0.00
|
|
|
| 82 |
1514266000
|
FASCETTA
|
€
6.07
|
|
|
| 83 |
1224800000
|
CARBURETOR HOOD
|
€
15.21
|
|
|
