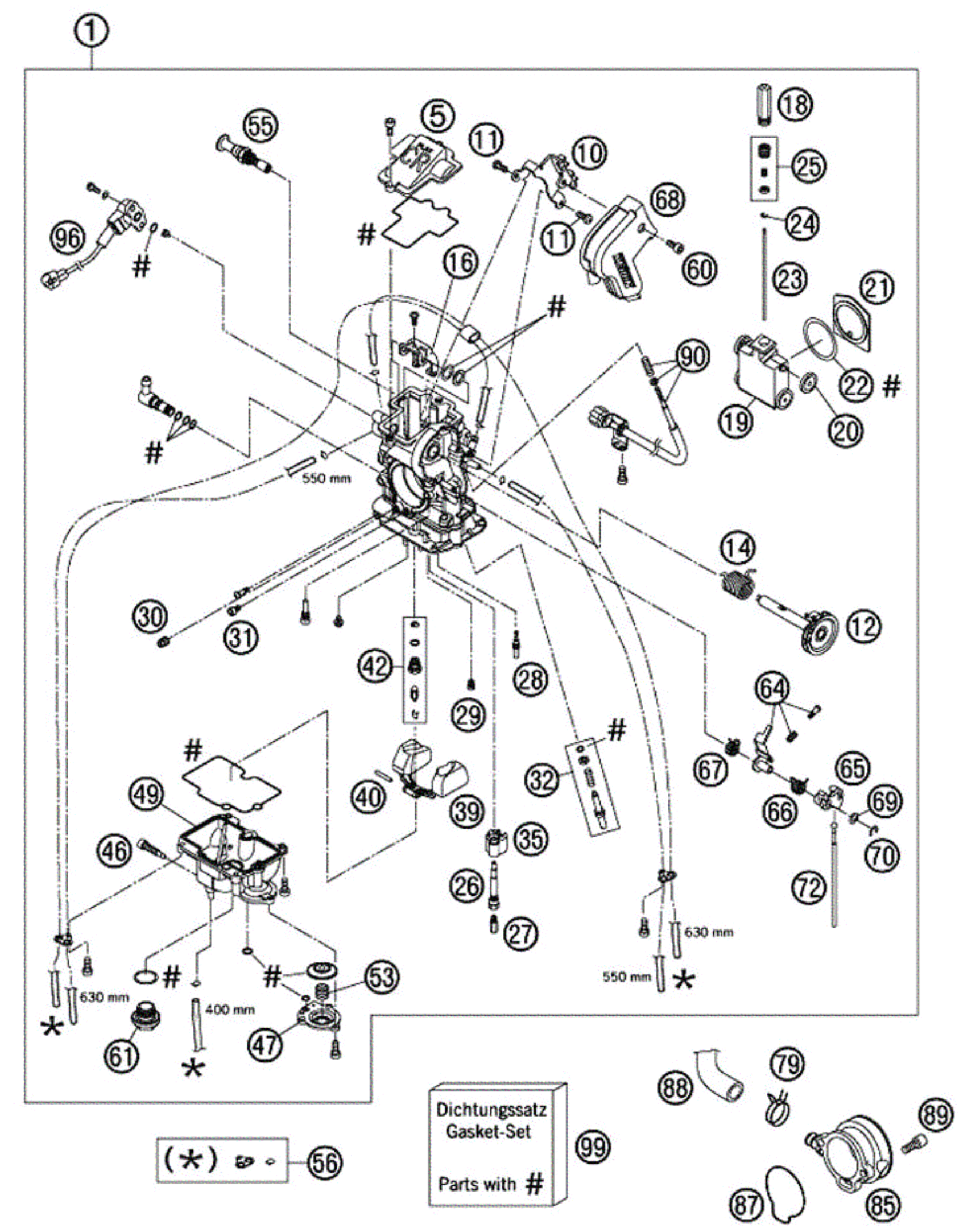

| 1 |
1204906000
|
Carburettor, 400 Exc
|
|
€
888.90
|
|
|
| 1 |
1204902000
|
Carburettor, 450 Exc
|
|
€
0.00
|
|
|
| 1 |
1204904000
|
Carburettor, 525 Exc
|
|
€
0.00
|
|
|
| 5 |
3625146000
|
Carburetor Cover
|
|
€
22.56
|
|
|
| 10 |
3625164000
|
Carburetor Cover
|
|
€
41.52
|
|
|
| 11 |
3625158000
|
Screw M5 X 8
|
|
€
2.03
|
|
|
| 12 |
3625155000
|
Throttle Shaft Cpl
|
|
€
98.78
|
|
|
| 14 |
3625156000
|
Throttle Shaft Spring
|
|
€
0.00
|
|
|
| 16 |
3625150000
|
Link Arm Throttle Valve Cpl
|
|
€
60.16
|
|
|
| 18 |
3625241000
|
Slide Stop
|
|
€
19.98
|
|
|
| 19 |
3625149000
|
Throttle Valve Cpl
|
|
€
402.85
|
|
|
| 20 |
3625249000
|
Bushing Throttle Valve
|
|
€
7.25
|
|
|
| 21 |
3625151000
|
Gasket, Throttle Valve Plate
|
|
€
152.67
|
|
|
| 22 |
3625250000
|
Washer, Throttle Valve Plate
|
|
€
12.31
|
|
|
| 23 |
3625248000
|
Jet Needle Obdtr Keihin
|
|
€
19.94
|
|
|
| 23 |
3625420000
|
Jet Needle Obdvr Keihin
|
|
€
19.94
|
|
|
| 24 |
3625240000
|
Bar Clip
|
|
€
4.40
|
|
|
| 25 |
3625147000
|
Needle Set Screw Cpl.
|
|
€
31.30
|
|
|
| 26 |
3625256000
|
Needle Jet Fcr-Mx
|
|
€
23.21
|
|
|
| 27 |
3625111000
|
Main Jet 172 Keihin
|
|
€
9.32
|
|
|
| 27 |
3625114000
|
Main Jet 180 Keihin
|
|
€
9.14
|
|
|
| 27 |
3625113000
|
Main Jet 178 Keihin
|
|
€
9.06
|
|
|
| 27 |
3625117000
|
Main Jet 188 Keihin
|
|
€
9.06
|
|
|
| 27 |
3625112000
|
Main Jet 175 Keihin
|
|
€
9.42
|
|
|
| 27 |
3625110000
|
Main Jet 170 Keihin
|
|
€
9.92
|
|
|
| 27 |
3625115000
|
Main Jet 182 Keihin
|
|
€
9.14
|
|
|
| 27 |
3625116000
|
Main Jet 185 Keihin
|
|
€
9.06
|
|
|
| 27 |
3625118000
|
Main Jet 190 Keihin
|
|
€
9.06
|
|
|
| 28 |
3625103000
|
Idle Jet 45 Keihin
|
|
€
0.00
|
|
|
| 28 |
3625102000
|
Idle Jet 42 Keihin
|
|
€
0.00
|
|
|
| 29 |
3625253000
|
Starter Jet 85 Keihin
|
|
€
12.93
|
|
|
| 30 |
3625139000
|
Idle Air Jet 100 Keihin
|
|
€
12.27
|
|
|
| 31 |
3625152000
|
Idle Air Jet 200 Keihin
|
|
€
8.97
|
|
|
| 32 |
3625237000
|
Adjust Screw Cpl. Fcr-Mx
|
|
€
12.73
|
|
|
| 35 |
3625166000
|
Buffer Plate
|
|
€
8.27
|
|
|
| 39 |
3625141000
|
Float Cpl
|
|
€
42.20
|
|
|
| 40 |
3625140000
|
Arm Pin Float
|
|
€
1.89
|
|
|
| 42 |
3625144000
|
Needle Valve Cpl
|
|
€
50.47
|
|
|
|
3625478000
|
float needle(2007/2008 Version 400 cc)
|
|
€
17.30
|
|
|
|
3625479000
|
Clamp(2007/2008 Version 400 cc)
|
|
€
1.92
|
|
|
|
3625480000
|
Plug m10x1(2007/2008 Version 400 cc)
|
|
€
0.00
|
|
|
|
3625481000
|
Copper gasket(2007/2008 Version 400 cc)
|
|
€
0.67
|
|
|
|
3625482000
|
Hose connector(2007/2008 Version 400 cc)
|
|
€
31.45
|
|
|
| 46 |
3625170000
|
Drain Screw Float Chamber
|
|
€
4.89
|
|
|
| 47 |
3625161000
|
Cover Accelerator Pump
|
|
€
17.37
|
|
|
| 49 |
3625142000
|
Float Chamber
|
|
€
169.51
|
|
|
| 53 |
3625254000
|
Coil Spring
|
|
€
5.07
|
|
|
| 55 |
3625157000
|
Starter Valve Cpl.
|
|
€
65.26
|
|
|
| 56 |
3625168000
|
Breath Hose Fcr-Mx Keihin Cpl.
|
|
€
88.38
|
|
|
| 60 |
3625154000
|
Screw F. Cover
|
|
€
7.03
|
|
|
| 61 |
3625143000
|
Holding Bolt
|
|
€
12.13
|
|
|
| 64 |
3625163000
|
Intermediate Lever Cpl
|
|
€
20.57
|
|
|
| 65 |
3625159000
|
Link Lever
|
|
€
4.63
|
|
|
| 66 |
3625160000
|
Spring Link Lever
|
|
€
6.08
|
|
|
| 67 |
3625171000
|
Spring Intermediate Lever
|
|
€
5.98
|
|
|
| 68 |
3625153000
|
Carburetor Cover
|
|
€
18.46
|
|
|
| 69 |
3625167000
|
Washer Link Lever Carbura- tore Keihin
|
|
€
1.40
|
|
|
| 70 |
3625165000
|
E-Clip
|
|
€
2.14
|
|
|
| 72 |
3625162000
|
Rod Accelerator Pump
|
|
€
18.11
|
|
|
| 79 |
3625195000
|
Ydnac-Clamp 16mm
|
|
€
1.09
|
|
|
| 85 |
2719792000
|
Intake Funnel
|
|
€
7.77
|
|
|
| 87 |
1067364000
|
O-Ring
|
|
€
1.94
|
|
|
| 88 |
3625252000
|
Engine Breather Tube
|
|
€
0.00
|
|
|
| 89 |
3625064000
|
Ah Screw M5x12
|
|
€
0.38
|
|
|
| 90 |
3625145000
|
Stop Screw Cpl Fcr-Mx
|
|
€
44.76
|
|
|
| 96 |
3625483000
|
tps sensor fcr mx 190mm(2007/2008 Version 400 cc)
|
400cc |
€
104.77
|
|
|
| 96 |
3625255000
|
Throttle Position Sensor
|
450/525cc |
€
209.73
|
|
|
| 99 |
3625169000
|
Gasket Set Fcr-Mx
|
|
€
63.14
|
|
|
