1 |
3625489000
|

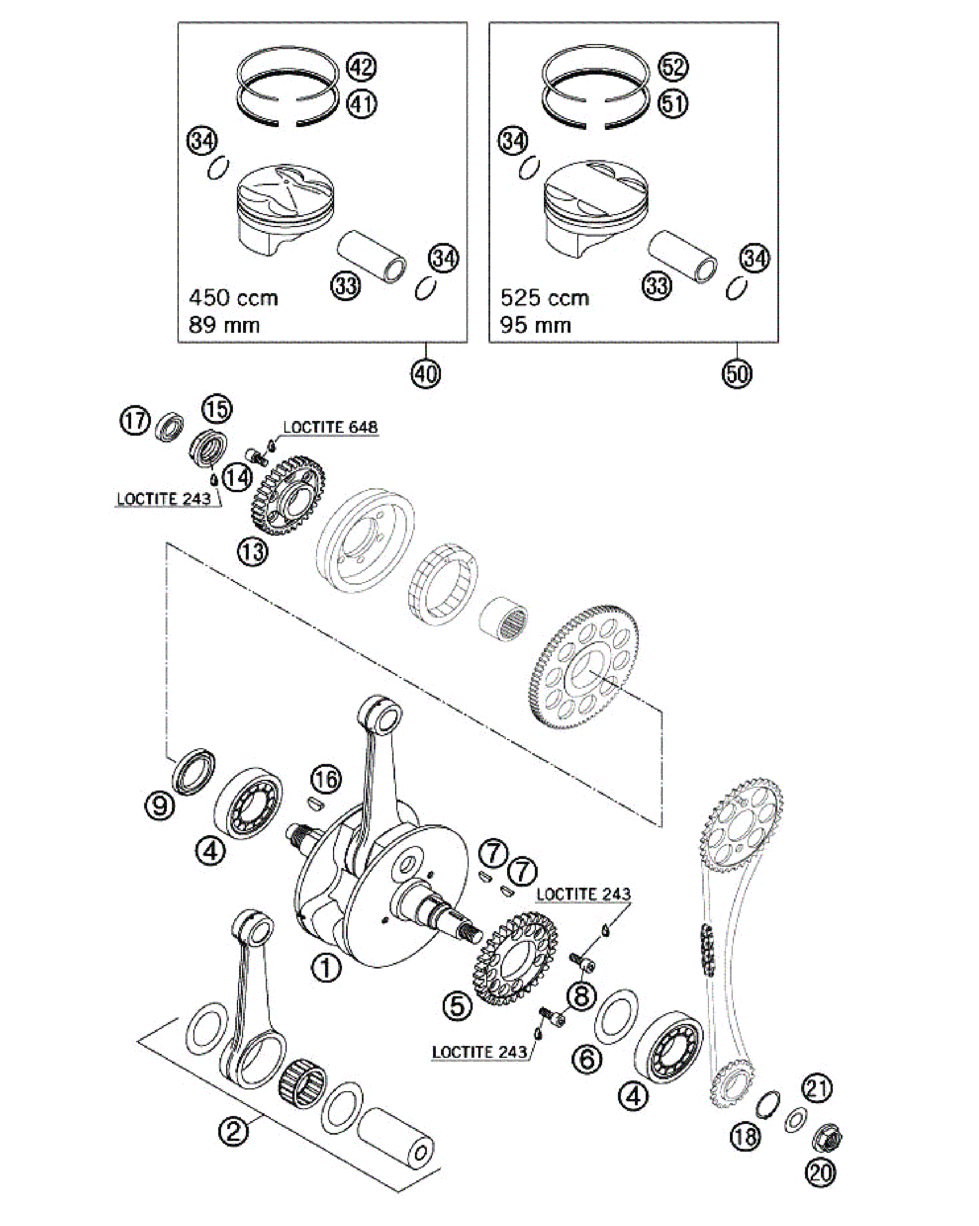

Crankshaft cpl(2007/2008 Version 450 - 525 cc)
|
€
598.54
|
|
|
2 |
3625216000
|
Con.Rod Rep.Set 250/450/ 525cc
|
€
366.80
|
|
|
4 |
3625091000
|
Cyl.Roller Bear
|
€
51.16
|
|
|
5 |
3625231000
|
Drive Gear 32-T F.Bal- anc.Shaft
|
€
0.00
|
|
|
6 |
3625135000
|
Thrust Washer 30,5x45x0,30
|
€
1.69
|
|
|
6 |
3625134000
|
Thrust Washer 30,7x47x0,15
|
€
0.46
|
|
|
6 |
3625133000
|
Thrust Washer 30,5x45x0,10
|
€
0.46
|
|
|
7 |
3625061000
|
Woodruff Key 3x5x13
|
€
0.81
|
|
|
8 |
3625072000
|
Screw M6x16
|
€
0.14
|
|
|
9 |
3625046000
|
Shaft Seal Ring 30x47x7 Bsl Viton
|
€
10.60
|
|
|
13 |
3625257000
|
Primary Gear 33 T
|
€
83.50
|
|
|
14 |
3625066000
|
Screw M6x10
|
€
0.21
|
|
|
15 |
3625223000
|
Hh Nur M20x1,5 Ws=27 Left
|
€
16.67
|
|
|
16 |
3625002000
|
Woodruff Key 5x6,5 Harded
|
€
1.27
|
|
|
17 |
3625044000
|
Shaft Seal Ring 14x24x6 B
|
€
0.00
|
|
|
18 |
3625033000
|
Circlip 25x1,2
|
€
0.28
|
|
|
20 |
1325010000
|
Nut, Magneto Special
|
€
1.98
|
|
|
21 |
3625017000
|
Spring Washer
|
€
0.44
|
|
|
33 |
3625225000
|
Piston Pin Bolt 20x15,8/ 12x50
|
€
0.00
|
|
|
34 |
3625233000
|
Circlip 20x1,5
|
€
2.46
|
|
|
40 |
3625421000
|
Piston I Cpl 450cc
|
€
228.20
|
|
|
40 |
3625422000
|
Piston Ii Cpl 450cc
|
€
195.17
|
|
|
41 |
3625381000
|
Oil Scraper Ring 89/81,5x3
|
€
14.77
|
|
|
42 |
3625172000
|
Rectangular Ring 89mm
|
€
26.73
|
|
|
50 |
3625418000
|
Piston Ii Cpl 525cc
|
€
353.08
|
|
|
50 |
3625417000
|
Piston I Cpl 525cc
|
€
353.08
|
|
|
51 |
3625179000
|
Oil Scraper Ring 95mm
|
€
14.77
|
|
|
52 |
3625224000
|
Rectangular Ring 95/ 87,2x1,25
|
€
26.73
|
|
|
