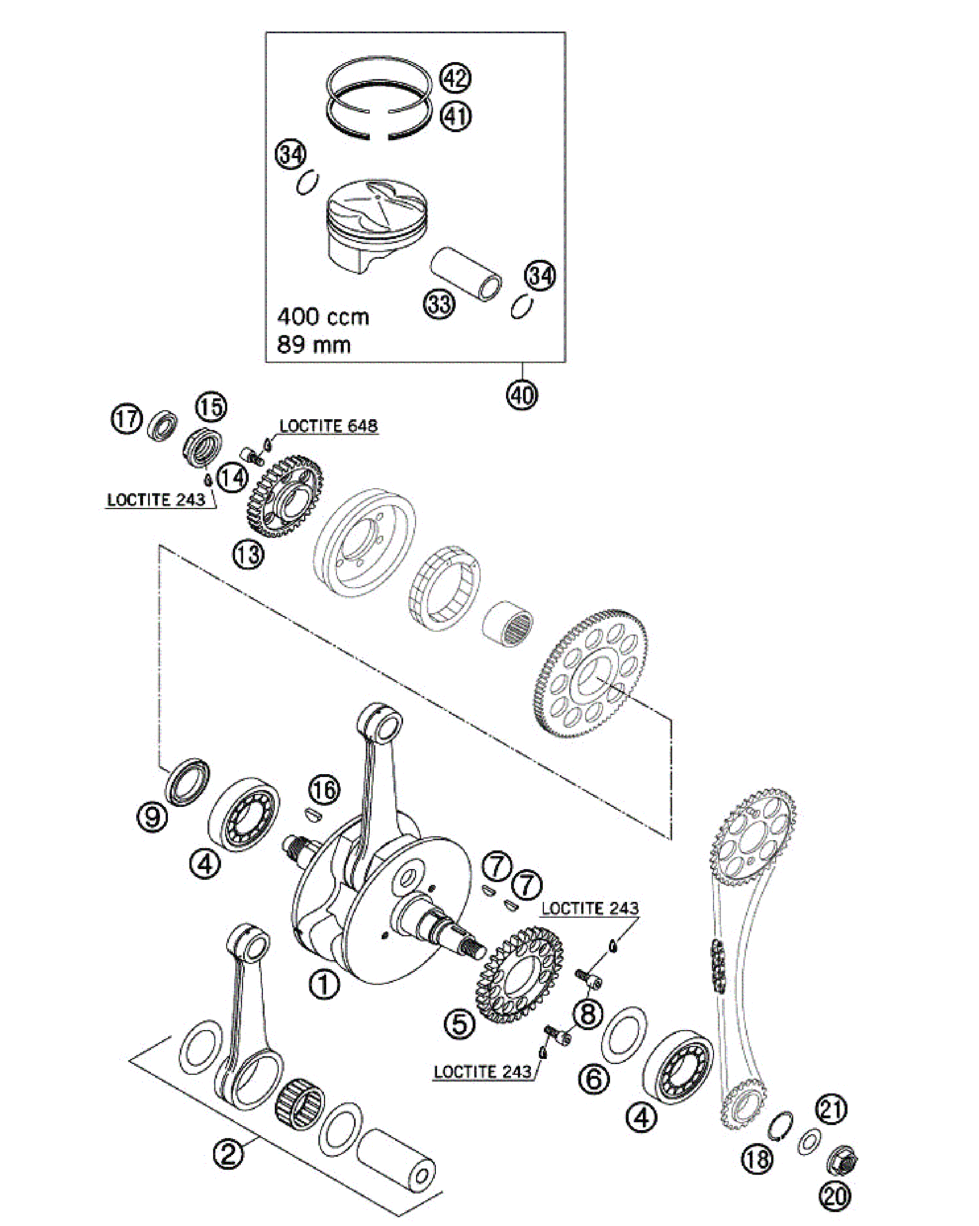

| 1 |
3625380000
|
Crankshaft Cpl. 400cc
|
€
0.00
|
|
|
| 2 |
3625379000
|
Con.Rod Rep.Set 400cc
|
€
349.63
|
|
|
| 4 |
3625091000
|
Cyl.Roller Bear
|
€
51.16
|
|
|
| 5 |
3625231000
|
Drive Gear 32-T F.Bal- anc.Shaft
|
€
0.00
|
|
|
| 6 |
3625135000
|
Thrust Washer 30,5x45x0,30
|
€
1.69
|
|
|
| 6 |
3625133000
|
Thrust Washer 30,5x45x0,10
|
€
0.46
|
|
|
| 6 |
3625134000
|
Thrust Washer 30,7x47x0,15
|
€
0.46
|
|
|
| 7 |
3625061000
|
Woodruff Key 3x5x13
|
€
0.81
|
|
|
| 8 |
3625072000
|
Screw M6x16
|
€
0.14
|
|
|
| 9 |
3625046000
|
Shaft Seal Ring 30x47x7 Bsl Viton
|
€
10.60
|
|
|
| 13 |
3625257000
|
Primary Gear 33 T
|
€
83.50
|
|
|
| 14 |
3625066000
|
Screw M6x10
|
€
0.21
|
|
|
| 15 |
3625223000
|
Hh Nur M20x1,5 Ws=27 Left
|
€
16.67
|
|
|
| 16 |
3625002000
|
Woodruff Key 5x6,5 Harded
|
€
1.27
|
|
|
| 17 |
3625044000
|
Shaft Seal Ring 14x24x6 B
|
€
0.00
|
|
|
| 18 |
3625033000
|
Circlip 25x1,2
|
€
0.28
|
|
|
| 20 |
1325010000
|
Nut, Magneto Special
|
€
1.98
|
|
|
| 21 |
3625017000
|
Spring Washer
|
€
0.44
|
|
|
| 33 |
3625225000
|
Piston Pin Bolt 20x15,8/ 12x50
|
€
0.00
|
|
|
| 34 |
3625233000
|
Circlip 20x1,5
|
€
2.46
|
|
|
| 40 |
3625424000
|
Piston Ii Cpl 400cc
|
€
231.75
|
|
|
| 40 |
3625423000
|
Piston I Cpl 400cc
|
€
228.20
|
|
|
| 41 |
3625381000
|
Oil Scraper Ring 89/81,5x3
|
€
14.77
|
|
|
| 42 |
3625172000
|
Rectangular Ring 89mm
|
€
26.73
|
|
|
